Stainless Steel Central Floor Heating Pipe Manifold , Pex Radiant Floor Heating Manifold Assembly

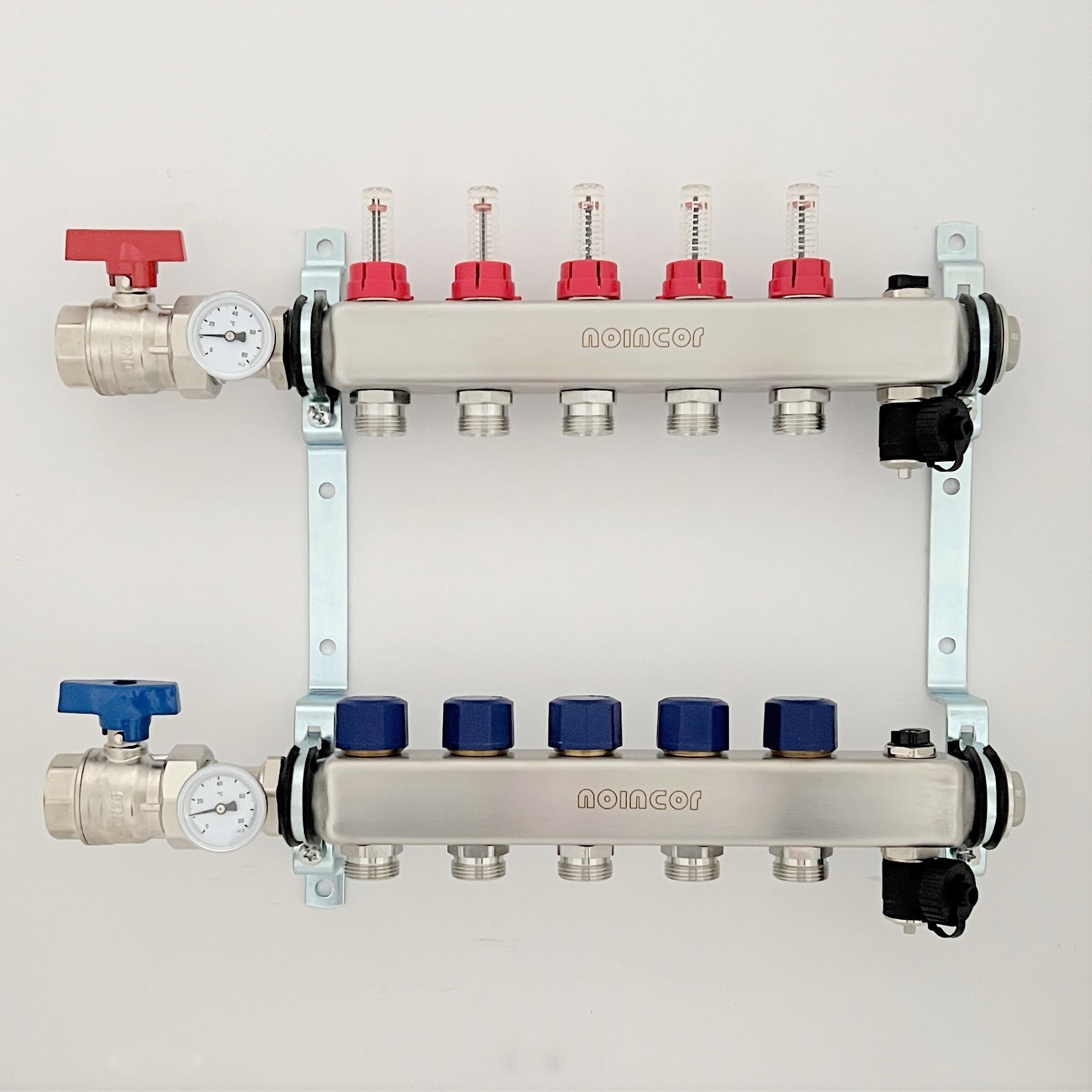

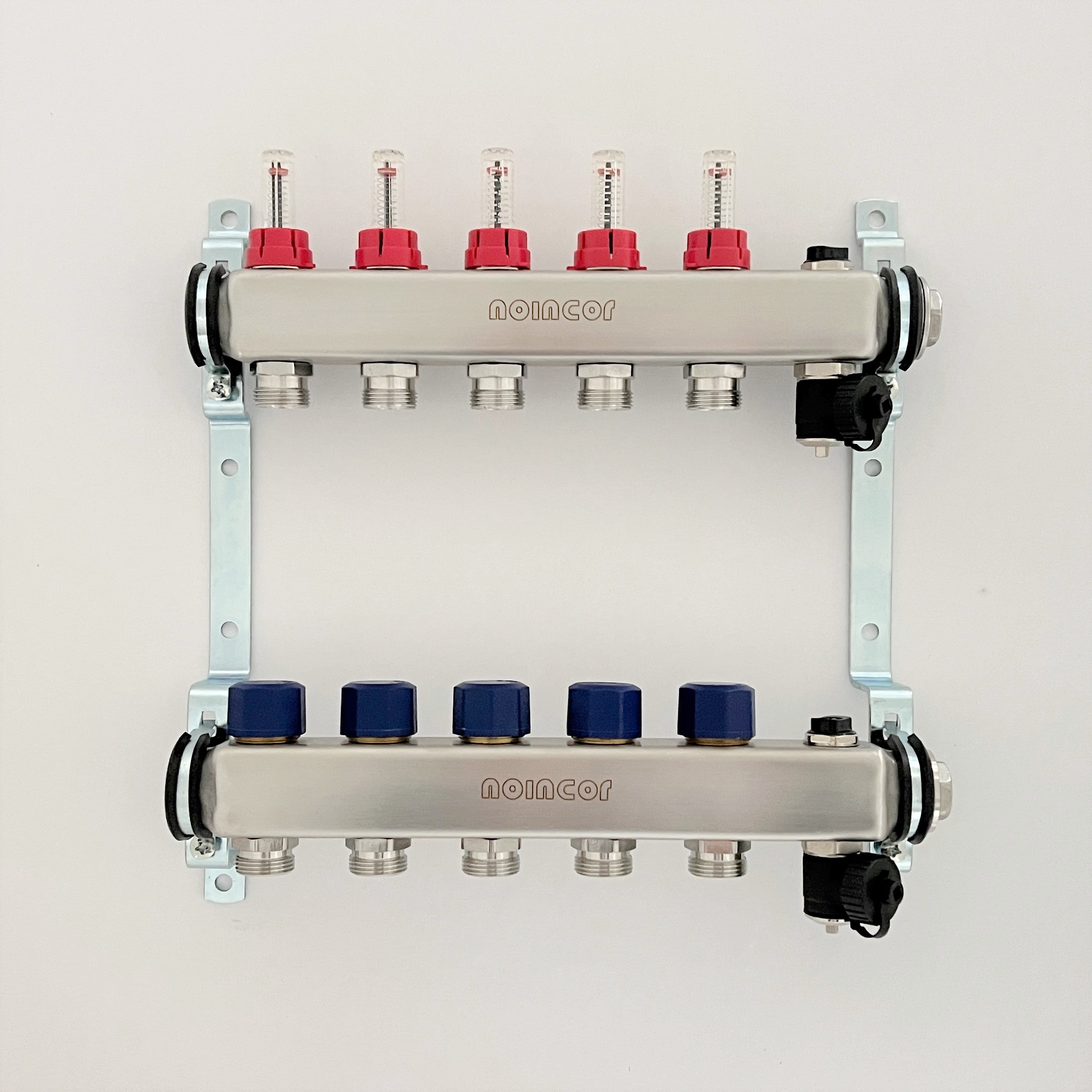

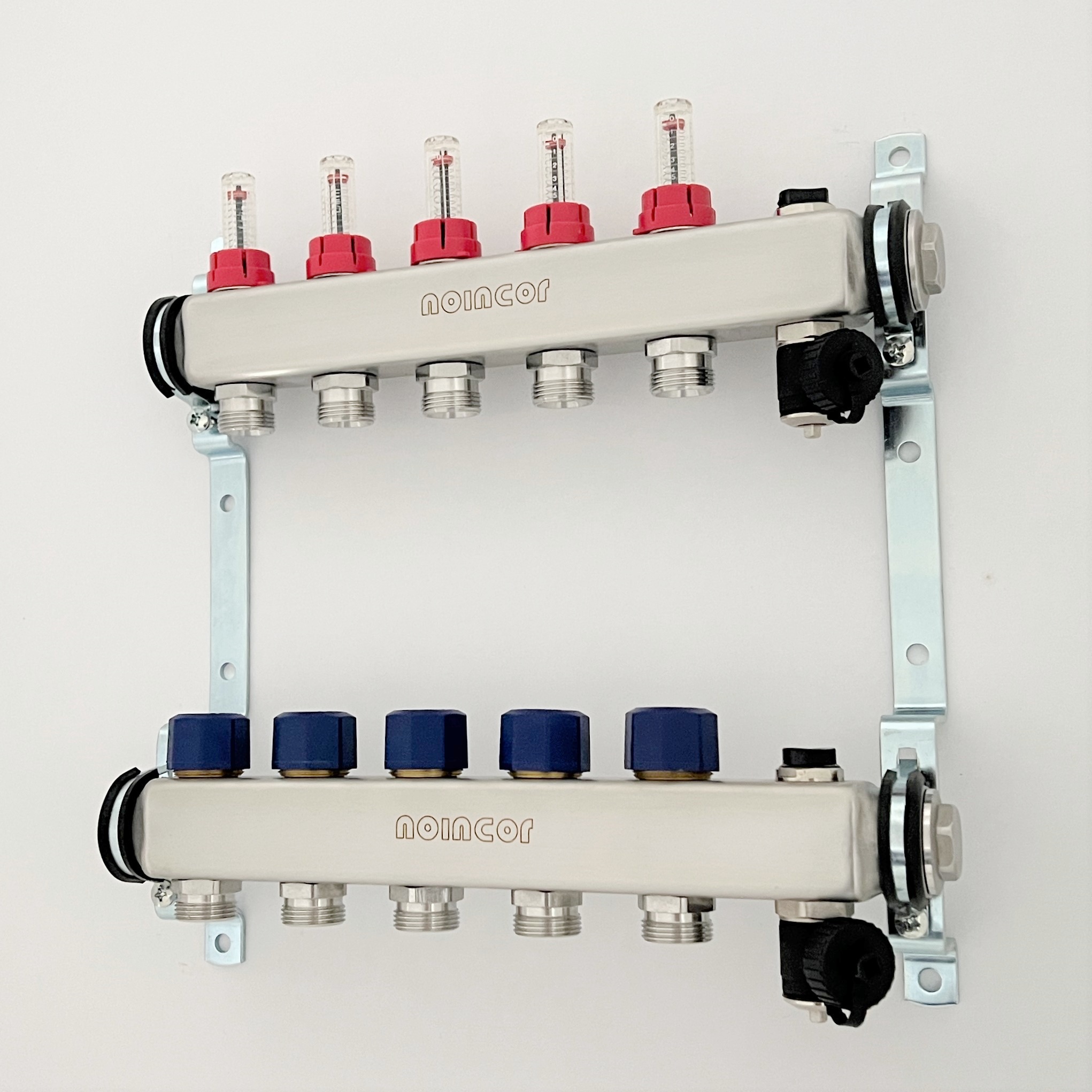

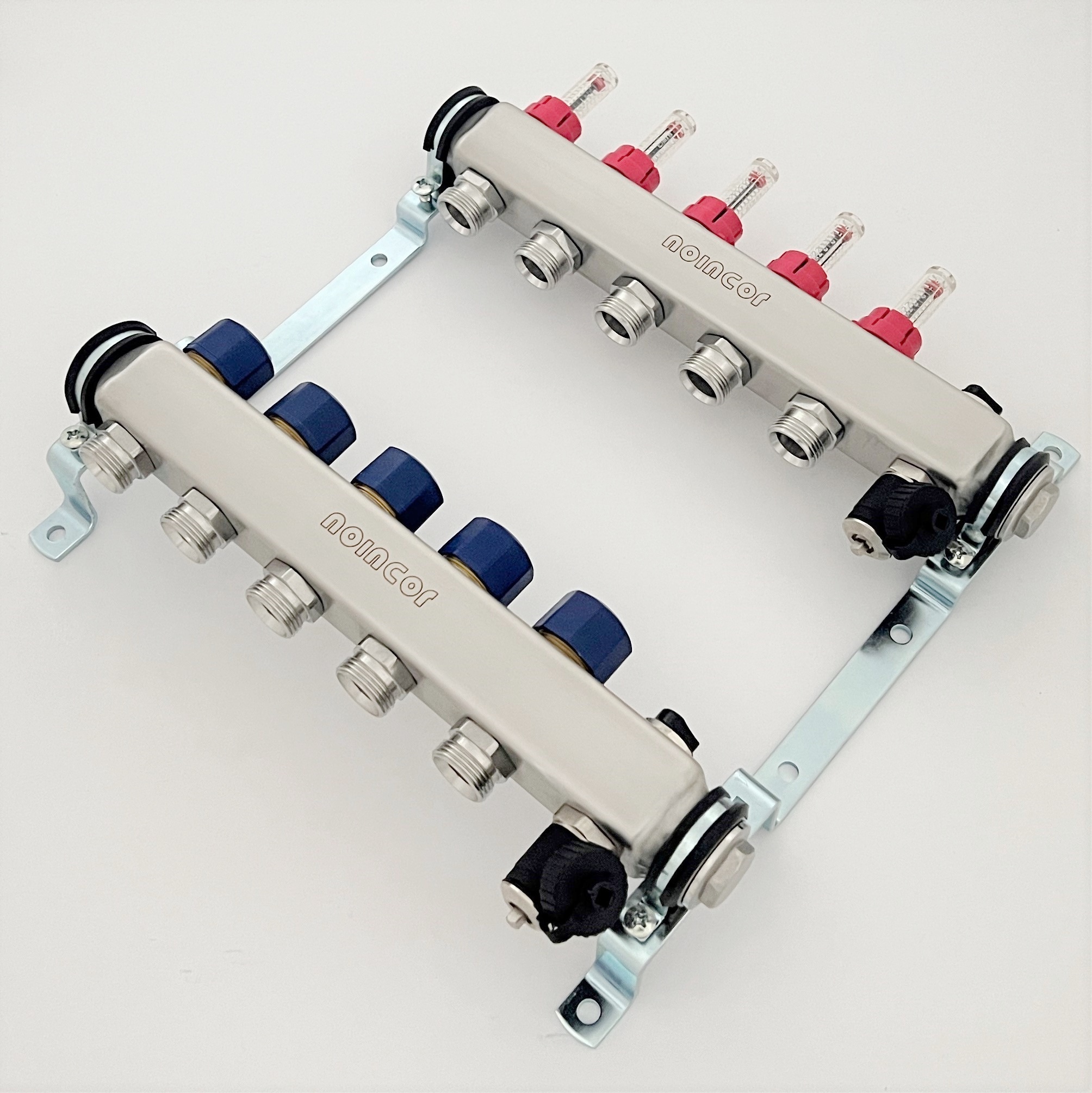

5 Loop Stainless Steel Central Floor Heating Pipe Manifold , Pex Radiant Floor Heating Manifold Assembly
Size: 1" (DN25),Pre-assembled;
Material made of Stainless steel 304 ,thickness: 1.6mm
Height of main tube: 40.7 mm+/-0.2
Supply Manifold with flow regulators (0,5-5 l/min) in each loop.

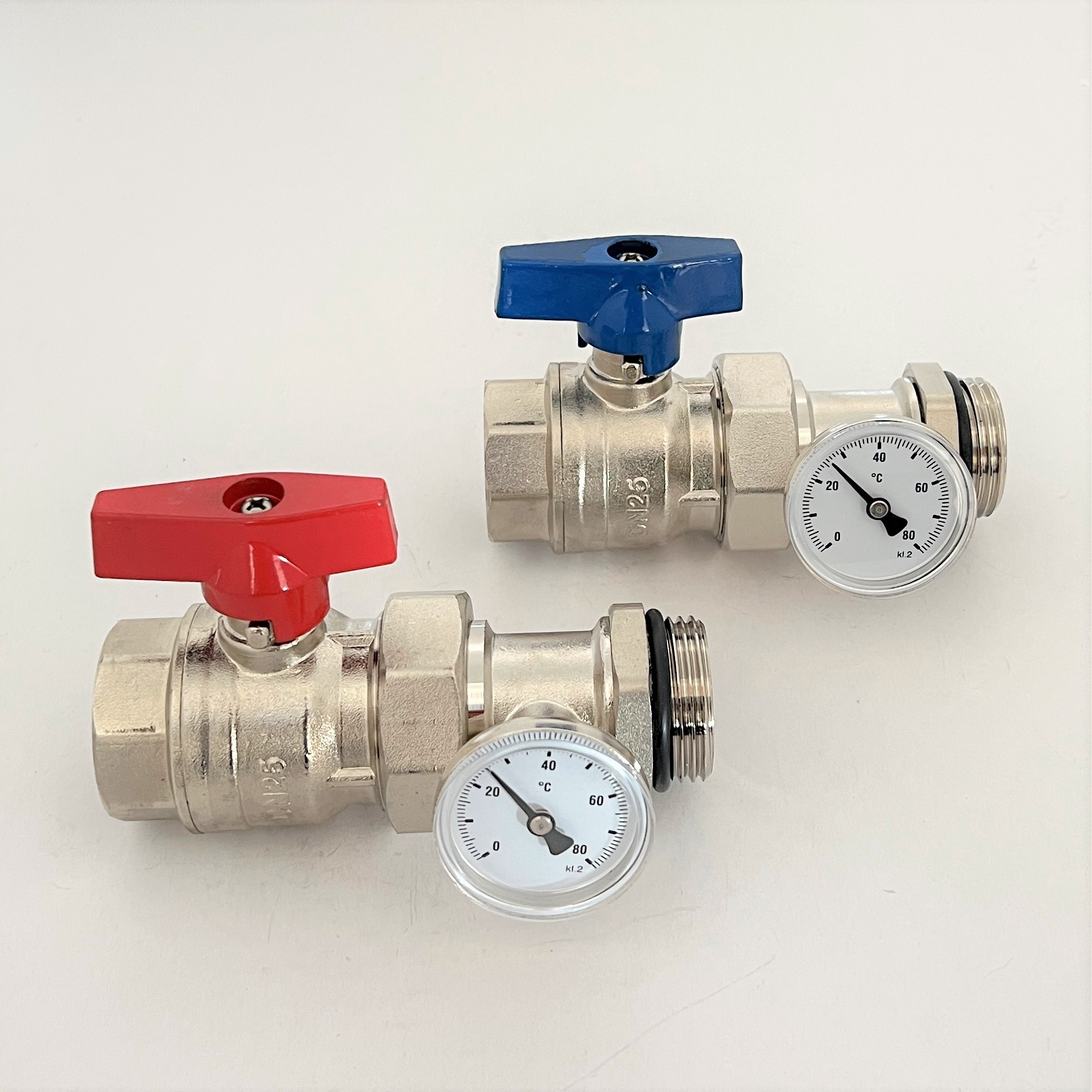

Return Manifold with brass balancing/shut-off valves in each loop.
Distance between outlets: 50 mm
Threaded of branch tube: 1/2"
2 pcs automatic air vent
2 pcs Fill / draining valves
2 pcs 1" end cap
2 pcs Chrome plated Mounting brackets

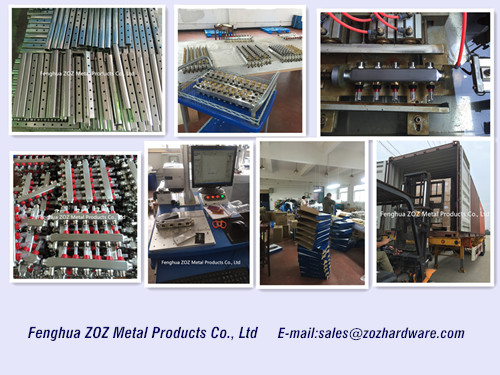

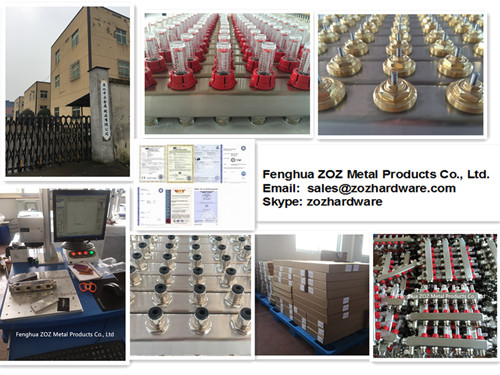

Fenghua ZOZ Metal Products Co., Ltd., located in Ningbo China. is principally engaged in radiant heating systems products R&D, design and manufacture machining, assembly and Installation service. products included brass floor heating manifolds, stainless steel underfloor heating manifolds,underfloor heating accessories,CNC machining parts,ect.

Our is high quality underfloor heating system products manufacturers,exporter.

Please check our website: www.zozhardware.com

A warranty of 10 years applies to the all stainless steel manifolds , warranty of 3 years applies to the manifolds accessories.

Stainless Steel Central Floor Heating Pipe Manifold , Pex Radiant Floor Heating Manifold Assembly Images
